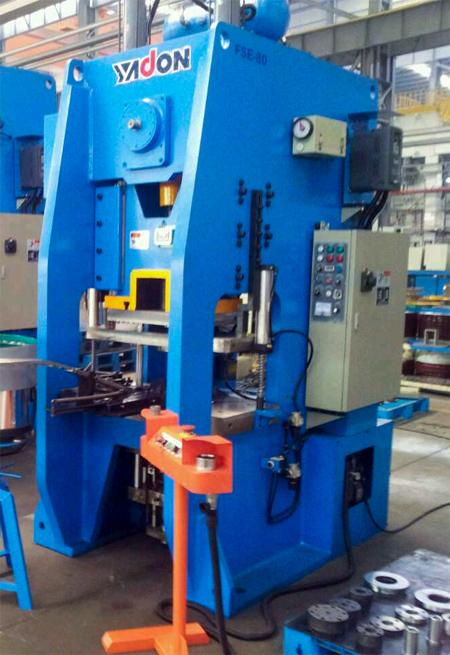

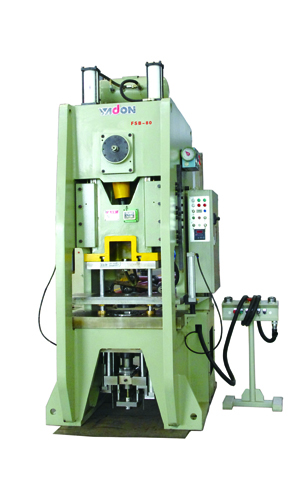

Technical Parameters of FSE PM Sizing Press

Item \ Parameters \ Model

FSE-45

FSE-80

FSE-100

FSE-160

FSE-200

FSE-250

FSE-315

FSE-400

Mold Base Structure

upper-1-lower-1

upper-1-lower-1

upper-1-lower-1

upper-1-lower-1

upper-1-lower-1

upper-1-lower-1

upper-1-lower-1

upper-1-lower-1

Max Compacting Force

KN

450

800

1000

1600

2000

2500

3150

4000

Upper Slider Stroke

mm

100

120

160

180

200

220

250

250

Nominal Force Stroke

mm

3.2

4

5

6

6

7

8

8

Max Filling Depth

mm

270

300

350

400

450

500

550

550

Filling Depth Adjustment

mm

60

80

90

100

110

110

120

120

Sizing Capacity

SPM

60-90

50-80

35-70

30-55

25-50

25-45

25-40

25-35

Main Motor Power

KW

5.5

7.5

11

15

22

30

37

37

Total Weight (Reference)

kg

4850

9000

12500

14500

16000

27600

32500

36500

Dimensions(Reference)

H

mm

2565

2890

3140

3365

3665

4050

4315

4395

W

mm

1110

1235

1520

1590

1730

1750

1840

1860

D

mm

1770

1910

2300

2470

2685

3260

3495

3530

Remarks

The JY21 (closed) series fixed table press are specially designed for the sizing of PM products, which are approved by authoritative Japanese technical experts.

Application

FSA Series PM sizing press is suitable for precision sizing of bushings, heterosexual parts, tooth-shaped parts, and pulleys.

Main Functions and Characteristics

Japan Technology China Made

It adopts typical crank connecting rod mechanism transmission, precision slider guidance and independent special mold base to ensure reliable operation. Pressure delay function is realized to ensure high precision and good consistency of products.

The mold is easy to install and adjust. Two working modes of upper mandrel or lower mandrel positioning can be realized.

Combination of machinery, pneumatics and hydraulics, and the linear feeding and discharging manipulator can easily realize fully automation of feeding, finishing, and discharging .

Various safety devices and detection devices are equipped to ensure safe and reliable operation.

Pressure indicating device can monitor and display the peak value of finishing pressure and set high / low finishing pressure alarm signals;

Combined friction clutch /brake are adopted, sensitive and reliable.

The electrical system is controlled by imported PLC programmable controller. The stoke and frequency are controlled by the frequency converter, with emergency stop, inching, single operation, and continuous operation.

Additional functions can be added according to customer requirements.
