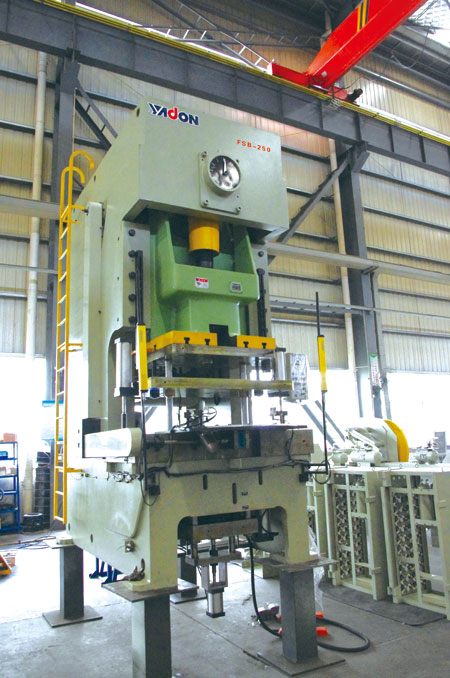

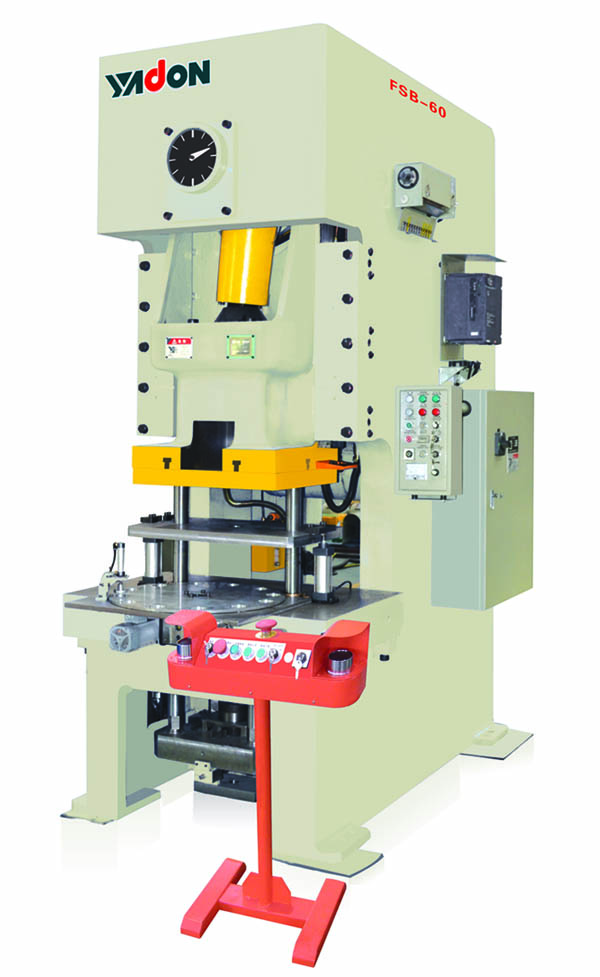

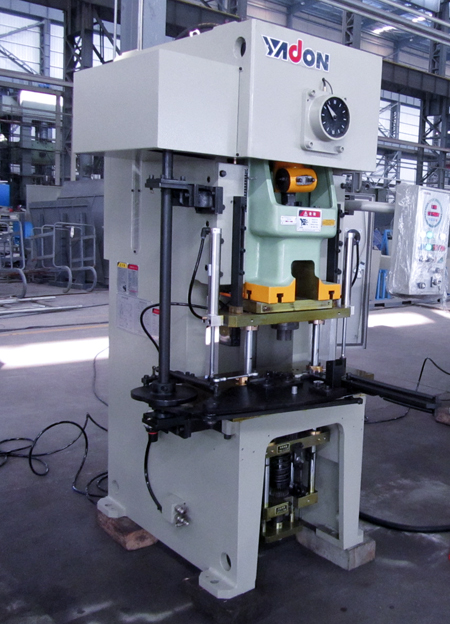

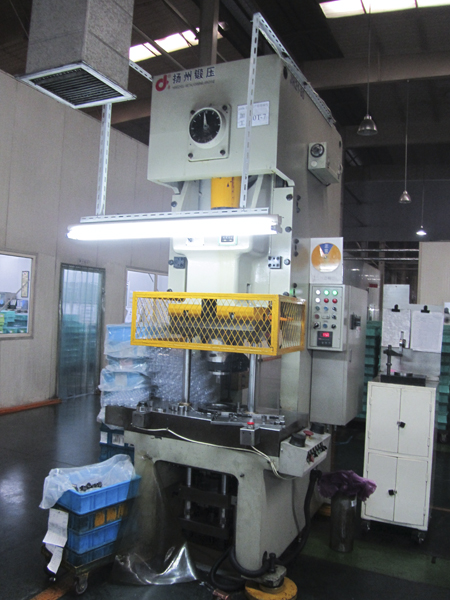

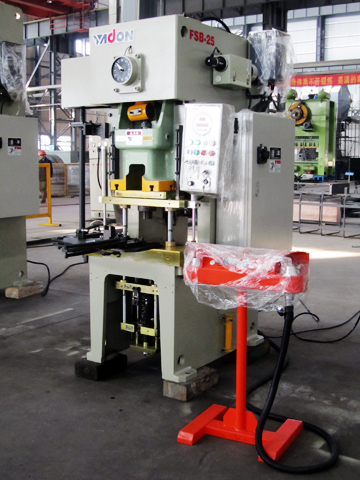

Technical Parameters of FSB Series PM Sizing Press

Item \ Parameters \ Model			FSB-25	FSB-45	FSB-60	FSB-80	FSB-110	FSB-160	FSB-200	FSB-250
Mold Base Structure			upper-1-lower-1	upper-1-lower-1	upper-1-lower-1	upper-1-lower-1	upper-1-lower-1	upper-1-lower-1	upper-1-lower-1	upper-1-lower-1
Max Compacting Force		KN	250	450	600	800	1100	1600	2000	2500
Upper Slider Stroke		mm	80	100	120	140	160	180	200	220
Nominal Force Stroke		mm	2.8	3.2	4	4.5	5	6	6	7
Max Filling Depth		mm	250	270	300	320	350	400	450	500
Filling Depth Adjustment		mm	50	60	70	80	90	100	110	110
Sizing Capacity		SPM	70-100	60-90	50-80	40-75	35-70	30-55	25-50	20-45
Main Motor Power		KW	3	5.5	7.5	7.5	11	15	22	30
Total Weight (Reference)		kg	3500	4400	6600	8500	12000	14000	15500	27000
Dimensions(Reference)	H	mm	2160	2300	2570	2820	3190	3250	3810	3930
	W	mm	950	1080	1200	1380	1419	1515	1630	1750
	D	mm	1350	1410	1615	1915	2200	2355	2690	2830
Remarks			The JH21 (open) series fixed table press are specially designed for the sizing of PM products, which are approved by authoritative Japanese technical experts.
